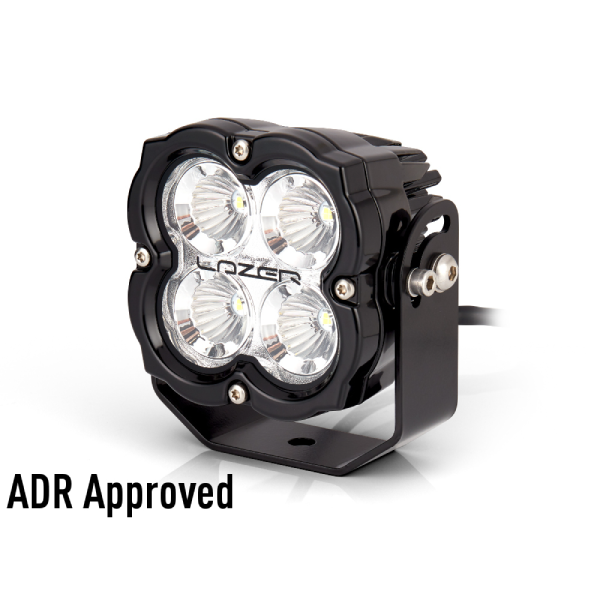

Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved
Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved

Utility 45 Gen2 (with 'Slimline' Bracket) - ADR Approved

(Exc. 20% VAT)
(£174.00 Inc. VAT)
In stock, immediate despatch
Part Number
1.30 kg
  • Based on: 1x Utility-45 LED Work Lamp.
  • Voltage Range (DC)     10-32V
  • LED Life     50,000 hours
  • Colour Temperature     5,000 Kelvin
  • Weight     1260 gr
  • Total Luminous Flux     4560 Lm
  • Colour Temperature     5000K
  • Number of High Output LEDs     4
  • Power Consumption     45 Watts
  • Current Draw (at 14.4V)     3.1 Amps
  • Work Lamp      ECE R10
  • IP Rating     IP68 / IP69K
  • Salt Spray Test     ISO 9227 (1000H)
  • EMC Protection     CISPR-25 (Class 3)
  • Shock     TBC
  • Vibration (BS EN 60068-2-64)     10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
  • Operating Temperature     -40deg C ... +90degC
  • Width     110 mm
  • Depth     85 mm
  • Height     108 mm
  • 1Lx Line @     69m
  • 5Lx Line @     41m
  • 20Lx Line @     23m
  • 50Lx Line @      16m*

* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.


The Utility-45 is a heavy-duty work light upgraded in 2018 to deliver even more visibility, with greater intensity and improved spread of light, facilitating safer and more productive work environments. The 50 lux line, defined by HSE as the effective level of illumination when working outdoors at night, is achieved at 16m distance, with a spread of 10m (mounted at 3m with 20 degree down angle). Combined with design features for maximising functionality and reliability, this is a product that can be relied on to deliver exceptional performance, time after time, whatever the application.

Continual improvement in, and adoption of, the latest and most efficient LED technology means the Utility Series stands apart from other work light solutions. 4 high density LEDs deliver 4,560 raw lumens which is harnessed through ultra-reflective, vacuum-metallised optics designed and engineered in the UK using advanced CAD design and light simulation software. The result – more light distributed over a bigger area, and with the LEDs carefully selected for their colour temperature, proven to maximise definition while reducing fatigue and strain that can come from using higher colour ranges.

The consistently high level of light output is maintained through an innovative CAE optimised 'Matrix' cooling system; the increased surface area ensures heat generated during operation of the lamp is more efficiently dissipated away from the unit. This process allows the light output to be maximised for longer, simultaneously the Electronic Thermal Management system optimises light output considering the environmental and thermal conditions of the lamp.

Lighting performance aside, the Utility Series is a product built to last, and to withstand the harshest of environments. The polycarbonate lens with hardcoat, is now bonded in place to guarantee water-tightness, and in keeping with the comprehensive 5 year warranty*, the lamps have been extensively tested to comply with EU regulations in relation to vibration, shock, and corrosion resistance, and alongside a super-tough construction, advanced electronic design ensures full EMC protection to CISPR-25 (Class 3) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-45 is available with a choice of ‘Wide’ or ‘Slimline’ mounting bracket. Lamps with additional cable protection are available where the installation is being made onto trucks required to comply with ADR regulations.

* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications, a 2 Year Warranty period applies.
