344 Series Electric Shutoff Valves

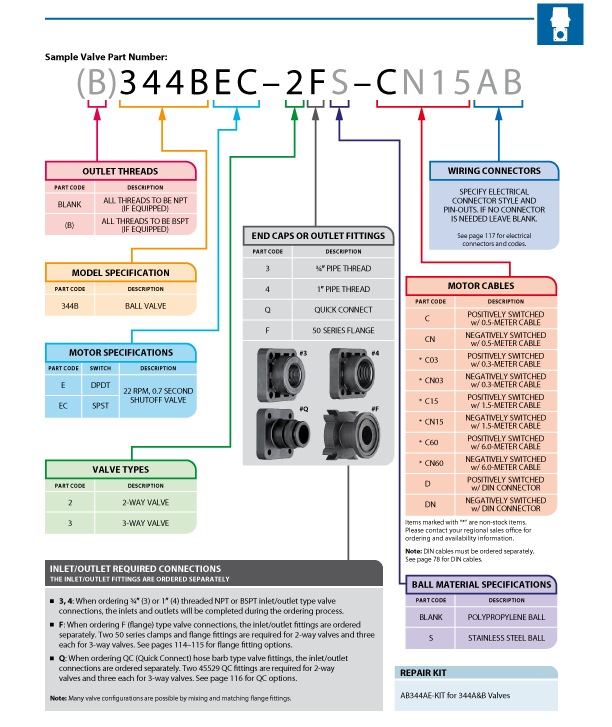

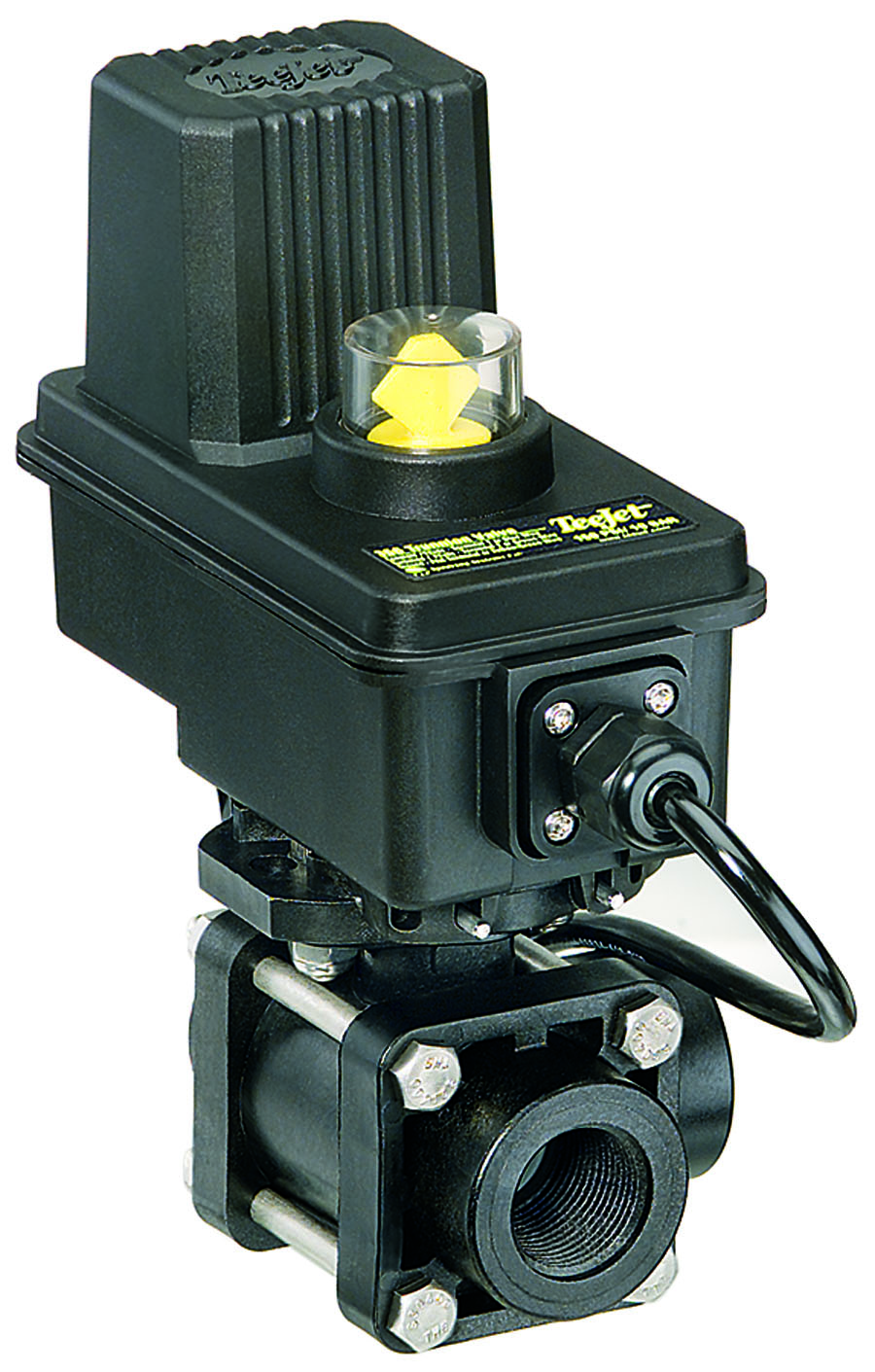

344B shutoff ball valves are available with E or EC series motors and with cable or DIN electrical connections.

Features:

• 22 RPM, 0.7 second shutoff fully open to close.Flexible inlet/outlets provide quick simple plumbing for a single valve. See page 85 for more information.
• Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
• Stainless steel stem with optional polypropylene or stainless steel ball.Maximum pressure rating is 300 PSI (20 bar).
• The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 PSI (0.34 bar) pressure drop, 45 GPM (170 l/min) at a 10 PSI (0.69 bar) pressure drop.
• The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 PSI (0.34 bar) pressure drop, 34 GPM (129 l/min) at a 10 PSI (0.69 bar) pressure drop.
• Wetted parts are Nylon, Teflon®, polypropylene, stainless steel and Viton®.

As there is such a large range of available valves please contact us to discuss or alternatively download the DirectoValve Catalogue
