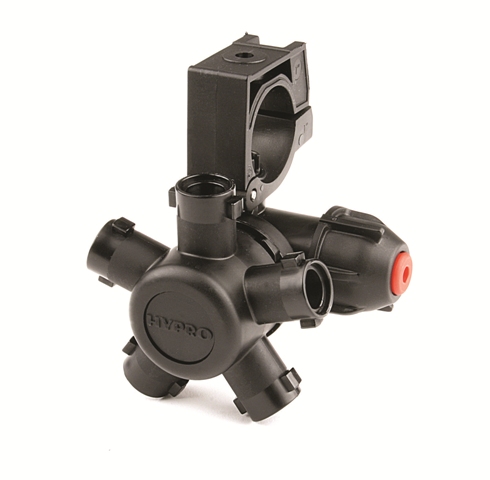

Hypro Proflo 5 Way Nozzle Holder

FEATURES & BENEFITS

• Turret style nozzle holder that can accommodate five nozzles.
• Consistent and reliable turret indexing mechanism with positive shut-off
• Diaphragm Check Valves rated at 0.55 bar are fitted as standard.
• A range of other spring pressure DCVs are also available
• Manufactured in Polyacetal and Nylon for chemical resistance, performance and durability. Available with EPDM or Viton® seals
• Hinged clamps to fit all common pipe sizes: ½, ¾, 1 inch, 20 and25 mm
• ProStop™ air-actuated nozzle valve offered as an alternative to the DCV.
• Can be supplied pre-fitted and leak tested on all ProFlo™ nozzle bodies
• Dry boom options also available

Sizing Information:

1/2" fit to spraylines of approximately 21mm OD

3/4" fit to spraylines of approximately 26.67mm OD

1" fit to spraylines of approximately 33.4mm OD

The hole size on the sprayline required for these nozzle holders is 10mm
