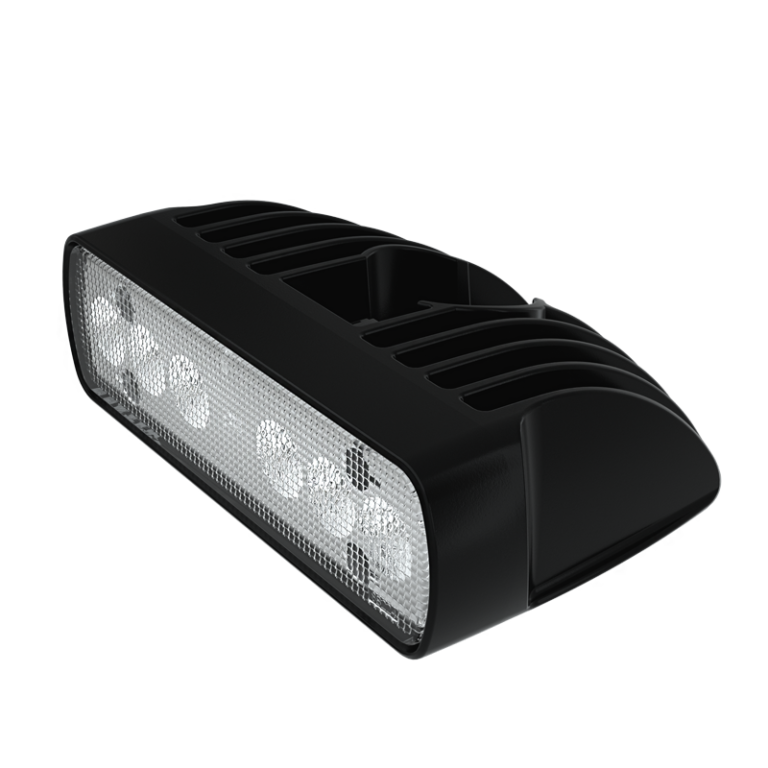

With NORDIC LIGHTS® Pictor 620 you’ll be sure to hit the bullseye. This LED work light is designed to be mounted on equipment booms or vehicle bodies for optimized and targeted illumination of a specific work area. Thanks to its compact and clever design, this low-profile work light is unbeatable in durability. The mechanical, thermal and corrosion resistance of Pictor 620 is excellent thanks to its Grilamid® lens and new strengthened aluminium housing.
While the Pictor 620 is lightweight and small, it still delivers as many as 1800 operational lumens and a vibration strength capacity of 15.3 Grms.
There are two versions available, one with a light pattern optimized for mounting on the left, the right or beneath the vehicle body, and one designed for top mounting. Used in the construction, forestry and mining industries, it is particularly suitable for excavators, telehandlers and other equipment with a boom.
Theoretical Lumens Output 2700lm
Operational Lumens Output 1800lm
Colour Temperature 5000K
Nominal Voltage DC 12V, 24V
Input Voltage DC 9 - 16V, 18 - 32V
Power Consumption 28W
Nominal Current at 12V=2.0A, 24V=1.0A
Connector Built-in Deutsch DT-2 (2-pin)
Mount M16 or M10
Vibration 15.3Grms 24-2000Hz
Lens Grilamid® (registered trademark of EMS-GRIVORY)
Body / Housing Aluminium
IP Rating IP68, IP6K9K
Salt Spray Test ISO 9227 240H
EMC CISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, ISO 13309, ISO 11452-2, EN 61000-4-2, ISO 14982, EN 12985
Operating Temperatures -40°C... +85°C (Overheat protected)
TT DS = Mounting on top with a downward light pattern.
TD US = Mounting upside down with a downward light pattern.
