DEUTSCH DT06-8S CONNECTOR KIT

£5.15
(Exc. 20% VAT)
(£6.18 Inc. VAT)
In stock, immediate despatch
+
Part Number
221-08
Brand
Deutsch Connectors
Weight
50 g

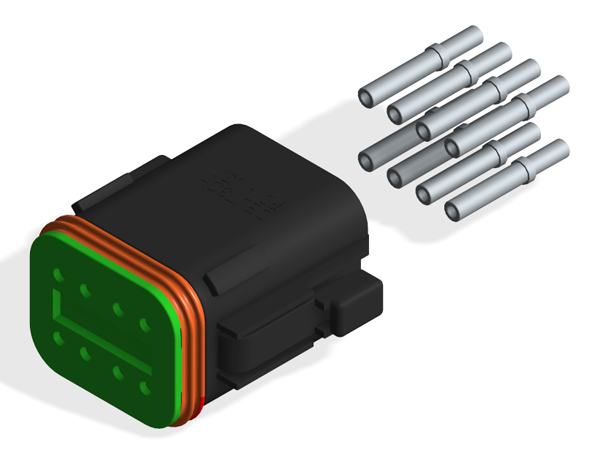

Kit Includes:


1x DT06-8S Plug
1 x W8S Wedge Green
8 x 0462-201-16141 Socket Contact

Notes:


Contact Size: 16
Current Rating: 13A
Gender: Receptacle
Wire Size AWG Max: 16AWG
Deutsch DT Series environmentally sealed connectors are designed specifically for cable to cable applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface sealsallow the connectors to withstand conditions of extreme temperature and moisture.

The connector may be populated with either solid or stamped & formed style contacts. Contact insertion and removal does not require any special tools. Contacts are retained in locked position by dielectric fingers which are molded as an integral part of the housing. Secondary wedgelocks are assembled at the mating interfaces to ensure contact positioning.

The Deutsch DT Series general purpose connectors will provide reliability and performance on the engine or transmission,under the bonnet, on the chassis, or in the cab.
